Tutorial 04 — TOTP authenticator handoff

Objectif — mint a TOTP secret, hand it off via QR code, then require the rolling 6-digit code at every binary launch. Concepts — RFC 6238 · ±30 s clock-skew window · authenticator apps (Google Auth / Authy / 1Password / Yubico) Attendu — the live code is accepted; a bogus 000000 is rejected with exit 1.

In the TUI

  1. 8 → TOTP screen.
  2. n → mint a fresh secret. The new row is selected.
  3. Q → pop the QR overlay. Hand your phone to the licensee and let them scan it into Google Authenticator / Authy / 1Password / Yubico.
  4. Esc to close the overlay.
  5. Bind it to a licence: 2 → Licences → n → wizard, step 7 (TOTP): pick the secret you just minted → Enter.
  6. After signing, E → /tmp/alice.license → Enter.
  7. 3 → Issuers → E → /tmp/issuer.pub → Enter.

The secret never leaves the manager DB — only the QR was displayed, once.

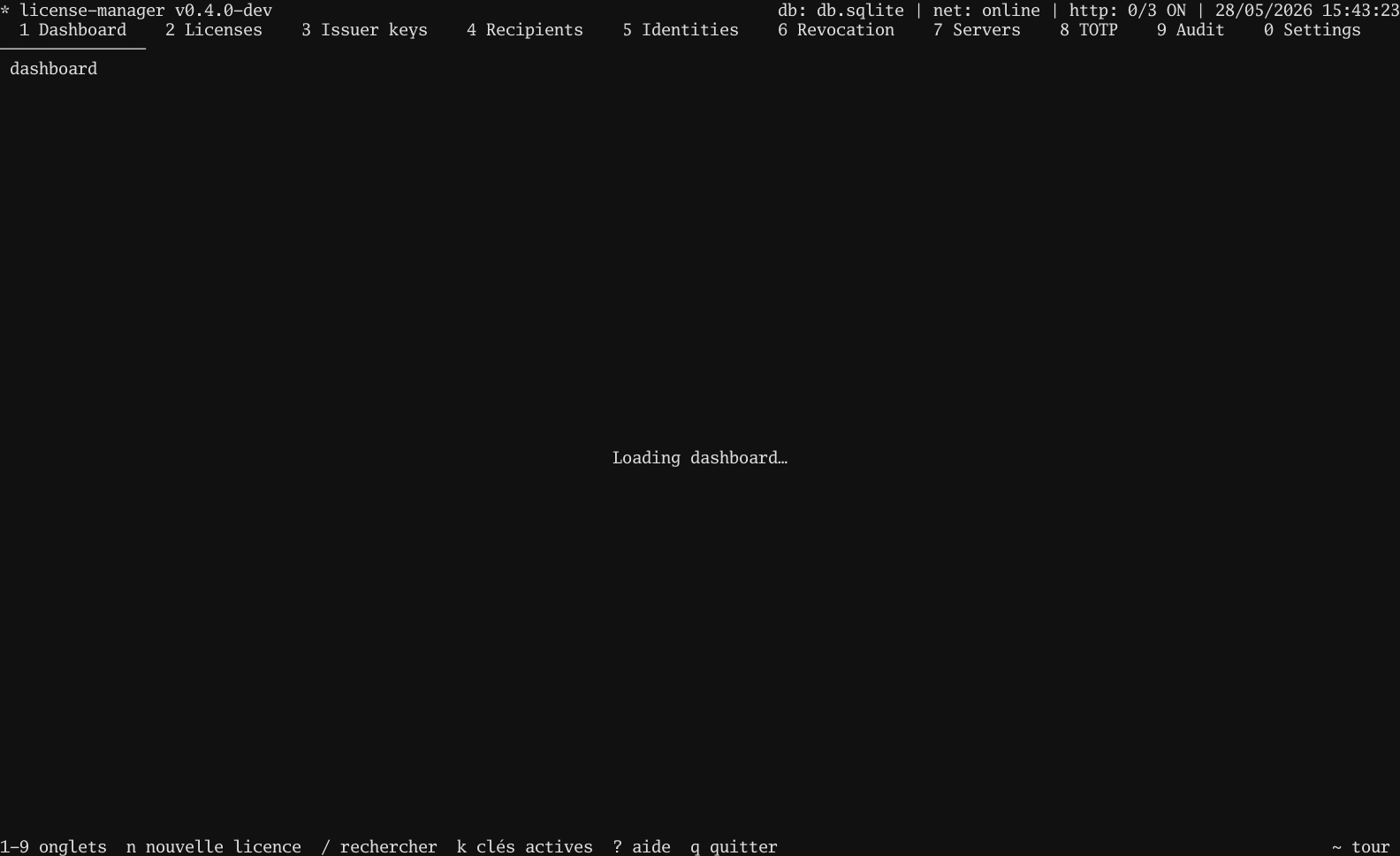

tutorial 04 TUI flow

In your program

package main

import (
    "bufio"
    "log"
    "os"
    "strings"

    license "github.com/oioio-space/maldev/license"
)

func main() {
    licPEM, _ := os.ReadFile("/tmp/alice.license")
    pubPEM, _ := os.ReadFile("/tmp/issuer.pub")

    pub, kid, _ := license.ParsePublicKey(pubPEM)
    trusted := license.Trusted{Keys: license.SingleKey(kid, pub)}

    // Prompt the user for the current 6-digit code.
    os.Stdout.WriteString("TOTP code: ")
    line, _ := bufio.NewReader(os.Stdin).ReadString('\n')
    code := strings.TrimSpace(line)

    v, err := license.Verify(licPEM, trusted, license.WithTOTPCode(code))
    if err != nil {
        log.Fatalf("license check failed: %v", err)
    }
    log.Printf("running for %s", v.Subject)
}

Wrong code → err != nil. The window tolerates ±30 s of clock drift; outside that, the user retypes the current code.

Runnable client: examples/.../04-totp-authenticator/client.

Test it together

go test ./examples/license-manager/tutorials/04-totp-authenticator

Renders the tape, issues a real TOTP-bound licence, runs the client with both the live code (accepted) and 000000 (rejected).
